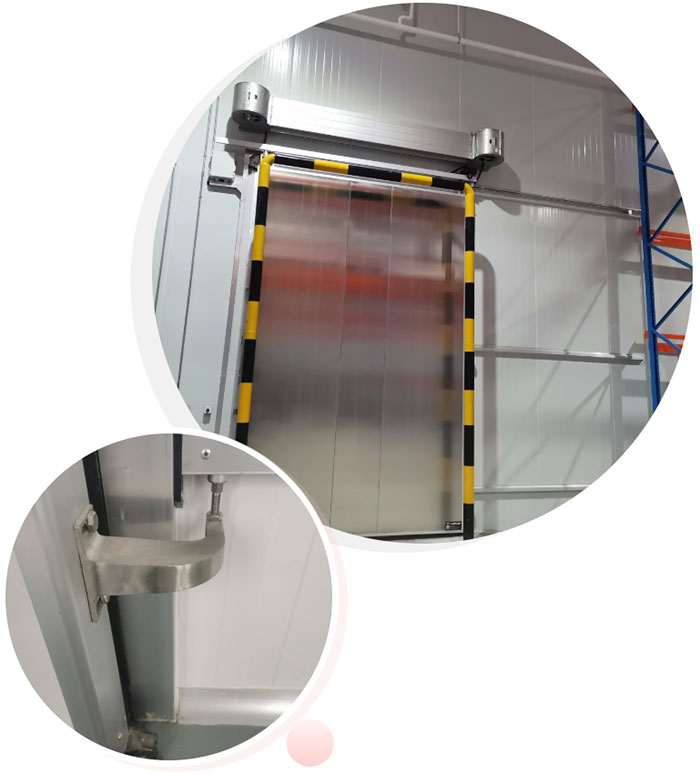

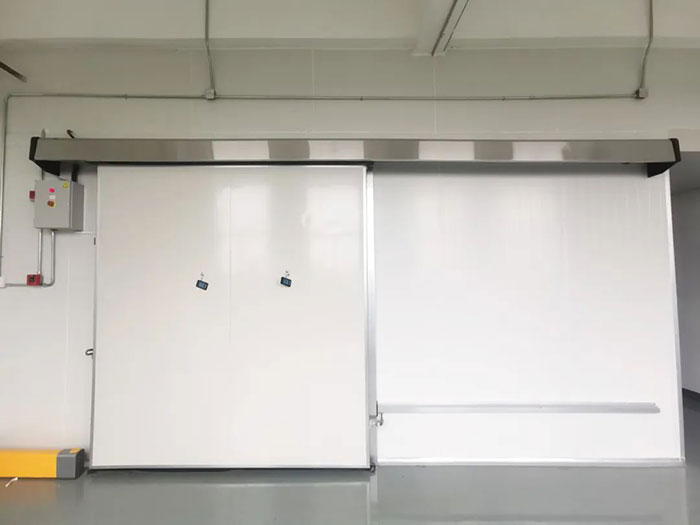

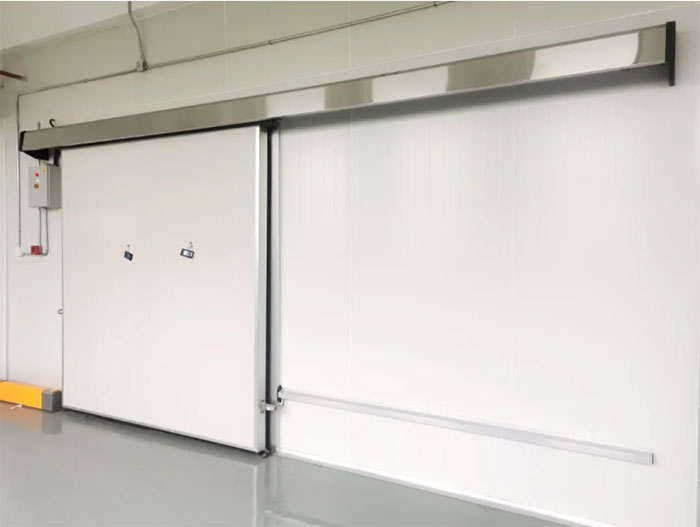

SD-SPY Cold Storage Metal Sliding Door
As a cold storage metal sliding door that complies with the national standard "17J610-1 Cold Storage Door" and the industry standard "SB/T10569-2010 Cold Storage Door" and meets market demand, Fastlink adopts a modular manufacturing process, with the characteristics of high degree of standardization, simple structure, stable operation, long service life, good thermal insulation performance, and high safety. It helps cold chain companies improve quality and efficiency and enhances user experience.
01. Energy saving and environmental protection
The internal panel of SD-SPY cold storage metal sliding door adopts polyurethane insulation core material, which has good insulation effect and can effectively reduce energy consumption. At the same time, Fastlink adopts variable line track and floating opening and closing door opening system to achieve self-sealing effect.
02. Good durability
The door panel adopts 304 stainless steel plate or color steel with brushed process, and is filled with insulation and flame-retardant polyurethane inside, with a density of 45±3Kg/m3. The surface has been specially treated and has excellent corrosion resistance, which can resist various erosions in harsh environments. The lines of the door body are smooth, which is both beautiful and easy to clean. The lines of the door body are smooth, which is both beautiful and easy to clean.

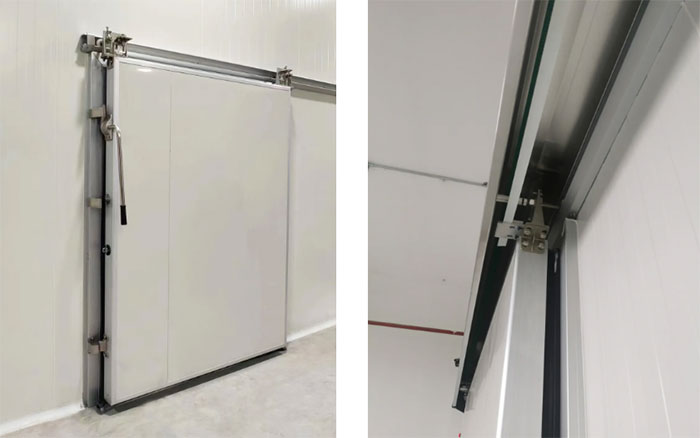

Heavy-duty aluminum alloy closed track, safe and anti-derailment, with a "V" groove with floating opening and sinking function in the guide rail. The track adopts 6063-T5 process, with a thickness of 8mm and anodized surface.

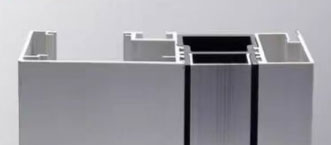

The aluminum alloy/304 stainless steel cold structure net frame (door frame) is designed with an embedded electric heating slot, the self-limiting temperature heating wire power is 25w/m, cold breaking and energy saving, and good impact resistance.
The hanging wheel frame, handles and other hardware are made of 304 stainless steel to prevent rust; the pulley is made of nylon, which is smooth and wear-resistant.
03. High security

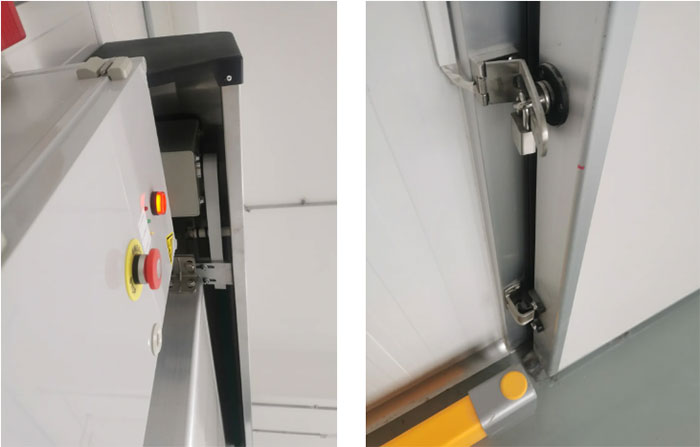

The door body adopts the gear rack transmission form, uses a permanent magnet servo motor, and the protection level of the motor and control system is IP65. At the same time, we are also equipped with an anti-pinch function. When the door encounters an obstacle during operation, it will automatically stop running to ensure the safety of the user.
In the event of an unexpected power outage, the warehouse door can be opened manually from the inside and outside. The external door opener is a lever-type door handle, and the internal door opener is an automatic interlocking device. The internal door unlocking device has a striking luminous logo.
04. Easy maintenance
Simple structure, easy maintenance, saving maintenance costs.
05. Intelligent control
Supports multiple control methods to meet the needs of different users.
06. Personalized customization
Provide a variety of sizes, colors and opening methods to choose from, which can be customized according to customer needs.
More application environments......
SD-SPY metal cold storage sliding door provides an efficient and environmentally friendly product solution for the modern cold chain logistics industry with its excellent performance, beautiful design and intelligent control method.
Whether it is food processing, pharmaceutical storage, chemical industry and other industries that require a refrigerated environment (not less than -60°C), it is worth choosing this product to improve operational efficiency and ensure product quality.
