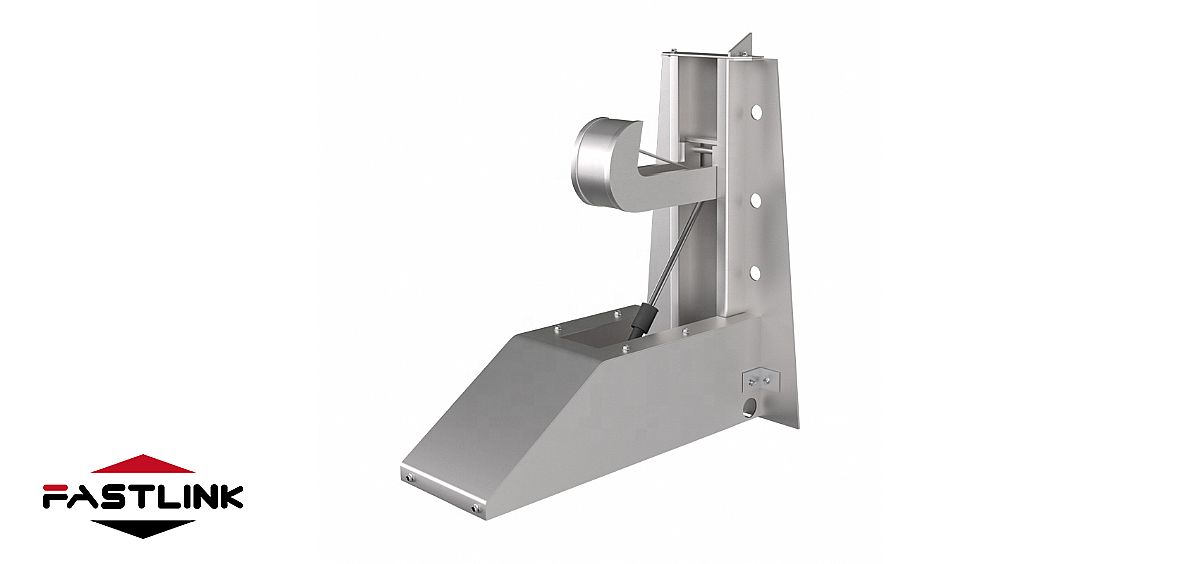

The Truck Restrictor is an electromechanical, adaptive tie-down device that secures a truck or semi-trailer to a dock leveler surface through the use of a rear bumper bar. Using a motorized steel hook to hold the rear bumper bar, a perfect fit between the vehicle and the dock leveler is achieved to stop the truck or trailer from moving forward, preventing the risk of goods and people falling when loading or unloading. Widely used in truck loading and unloading areas.
The locking hook lift contacting the truck bumper will automatically recognize and stop; The maximum pulling force can reach 16000KG, fully preventing trucks from accidentally driving away from resistance.
Easy to install
The mounting structure is designed to be simple and easy to install and relocate.
Multiple safety protection measures
High sensor sensitivity: no damage to vehicles or personnel; Linkage control: inform the operation status by linkage signal light to avoid misoperation; Electrical safety: set up leakage protection device; no risk of leakage.
Parts Design Highlights
01
Specialized hydraulic system for truck restrictor, small size, stable output.
Process Highlights
Surface treatment: Surface white zinc plating, neutral salt spray test 72H without white rust (GB6458-86).
Mounted on the exterior of the loading platform, centerline at the width of the vehicle stopping position, and secured to both the floor and the platform wall.
