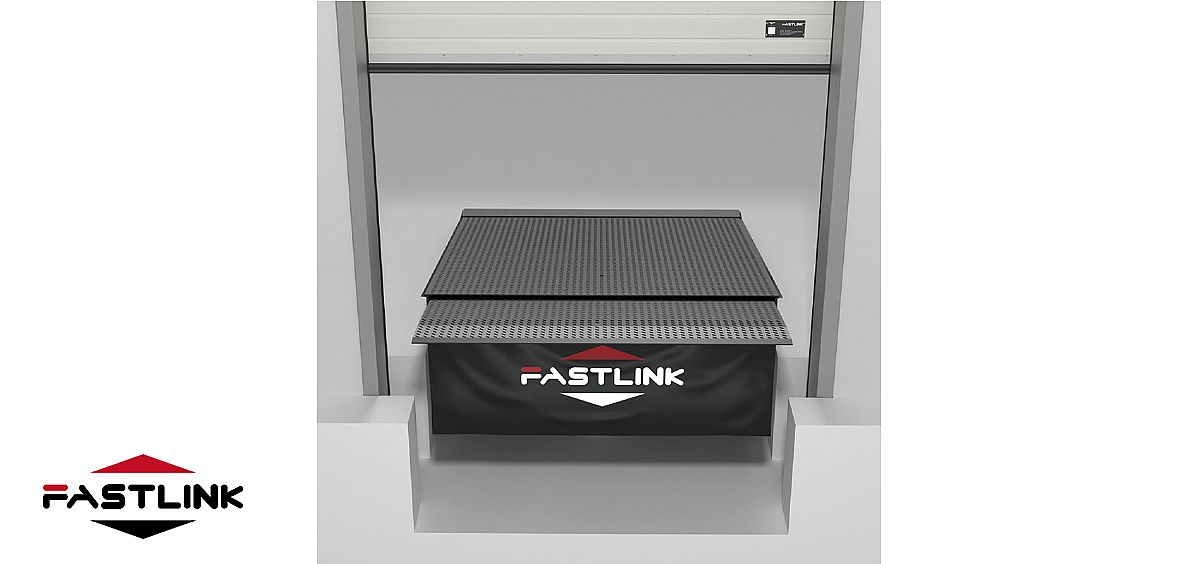

Telescopic Dock Levelers can achieve a safe and fast loading and unloading process, improve logistics loading and unloading efficiency, effectively adjust the height difference between the bottom plate of different transport vehicles and the platform, forming a slope transition between the rear of the vehicle and the platform, enabling the loading and unloading process to be completed in one go, avoiding accidental damage and unnecessary risks. For places with high insulation and sealing requirements such as cold storage, Telescopic Dock Leveler is a better solution. A Telescopic Dock Leveler is installed on the inner side of the cold storage insulation sliding door. After the door is closed, it directly falls to the bottom of the foundation pit, blocking the air convection between indoor and outdoor areas, thus achieving a fully sealed design of the unloading position and reducing energy loss.
The platform deck is made of a non-slip patterned steel plate with a substrate thickness of 8mm and the bottom structure is reinforced with 8-10 C-beam/I-beam reinforcements to meet different load-bearing requirements.
Extended lip plate
Extended lip plate with adjustable expansion and contraction to ensure normal use of loading and unloading.
Multiple security measures
Penetrating maintenance support rod: effectively avoiding safety accidents caused by accidental collisions during platform maintenance, resulting in the tilting of the maintenance support rod. Foot guard: prevents personnel from getting caught during the platform lifting process. Emergency stop function: the function of stopping in case of sudden safety accidents.
Parts Design Highlights
01
The non-slip patterned steel plate, with a thickness of 14/15mm, features a double 5-degree arch design that allows for a more seamless overlap of the tongue and carriage transition. This not only enhances the load-bearing strength of the tongue but also increases the overall stability of the mechanism.
02
The Maintenance Support Bar, in the form of a feed-through, provides reliable support for the platform and tongue, offering enhanced protection against impacts from the front and sides. With its central tongue support point, the through-design optimizes platform safety and impact resistance.
03
The platform is equipped with side stops on both sides to prevent the operator's toes from reaching under the platform and causing injury.
04
The system comprises a self-developed integrated intelligent control system. The device is equipped with an IP54 protection grade. The user interface is comprehensive and intuitive. Linkage with other devices.
Process Highlights
The inverted design of the cylinder effectively prevents dust from accumulating and avoids oil leakage due to wear and tear on the cylinder seals. Furthermore, this design causes the hydraulic locking valve to be ineffective.
The lip plate extends and is positioned by a polymer positioning wheel, which is wear-resistant, smooth, and runs smoothly
Fully automated production line, high production efficiency, and guaranteed quality
Two imported laser cutting machines are used to efficiently cut steel with a processing accuracy of 1mm.
The length of the platform depends mainly on the difference between the height of the floor of the carriage and the height of the platform; Platform length L = h (difference between carriage floor height and platform height) / 0.125".
The Telescopic Dock Leveler has the characteristic of a longer lip plate (1000mm/1200mm); 1. Used for loading and unloading goods on the side platform of vehicles; 2. Used in insulation environments such as cold storage, when the Dock Leveler needs to be completely indoors (the lip plate of the platform can extend to meet the needs of overlapping with the carriage).
Dynamic load: the maximum combined weight of forklift and cargo that can be passed when the platform is hitched to the inside of the compartment for operation; Static load: the maximum weight of static objects that can be placed on the platform in the reset state.
