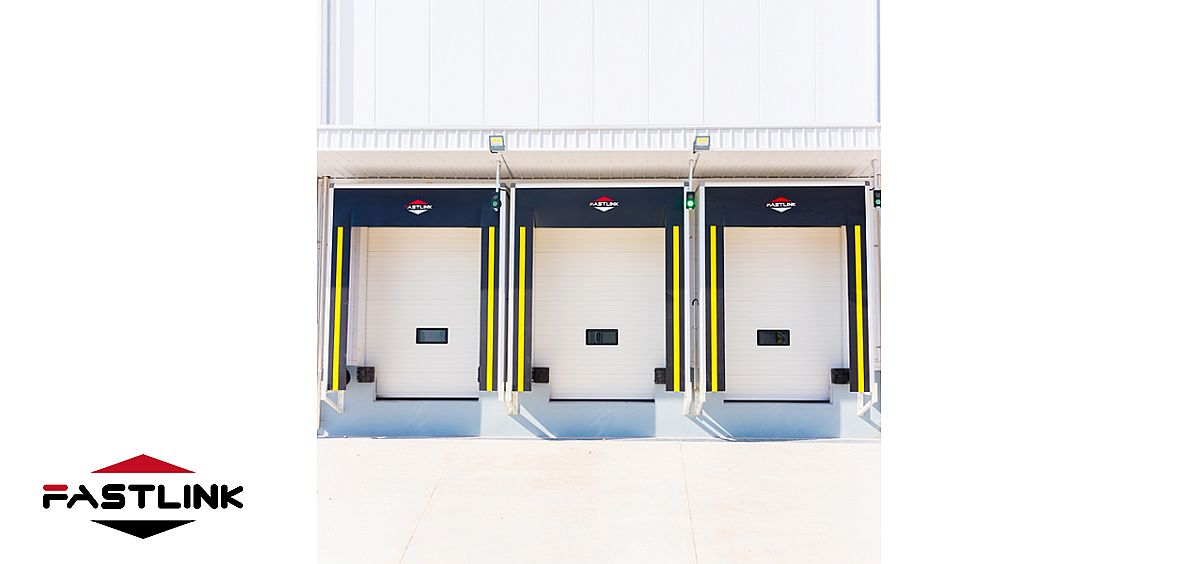

Insulated Sectional Door for Cold Storage is a commonly used logistics access door in industrial buildings, especially in buildings with temperature requirements. It has the characteristics of insulation, wind resistance, anti-theft, sealing, safety, and intelligent control. The door panel is composed of multiple layers of panels, with a segmented cold bridge design, and filled with imported Huntsman high-density polyurethane material (100% fluorine free). Adopting corrosion-resistant hardware accessories with a dynamic balancing system, the rollers on both sides of the door run up and down along the guide rail as a whole, improving the efficiency and safety of entering and exiting the site. Typical application industries: cold chain, pharmaceuticals, food, and building entrances in cold regions.
The special shape of the door panel and the embossed design on the surface give the sectional door excellent wind resistance, capable of withstanding a force 12 typhoon with a wind pressure resistance of 700Pa.
Multiple Security Measures
01
Bottom safety sensor:
No longer require spiral wires, avoiding entanglement and accidental scratching of the bottom sensor.
02
Wire rope anti-breakage device:
When the wire rope breaks, the safety switch can automatically clamp on the track to prevent the door from falling.
03
Semi-enclosed track handguard design:
Handguard protection for greater safety, removable track and secondary track for easy replacement, effectively reducing maintenance costs.
04
Built-in safety design of steel wire rope:
The steel wire rope is placed on the inside of the track, which is not easy to touch and avoids accidental injury.
Parts Design Highlights
01
Electronic limit motors with absolute value encoder for precise positioning.
02
High-strength spring steel, shot blasting and electrophoretic treatment, corrosion-resistant, not easy to rust, maintenance-free. Cast aluminum alloy steel wire tower wheel, with a lifespan of over 100,000 cycles.
03
The steel wire rope is placed on the inner side of the track, which is not easy to touch and avoids accidental injury. It has a safety factor of 2.5 times.
04
Double layered hollow organic glass; Window heating; There is a heating film on the inner side, and the self-limiting temperature of the heating film does not exceed 35 ℃ The window is transparent and clean.
05
Self-developed integrated intelligent control system IP54 protection level Multiple interfaces
Lifting Methods
Diversified lifting methods to meet installation needs in different spaces
Vertical lifting
High-level lifting
Standard lifting(Right Angle lift)
Process Highlights
Imported fully automatic continuous production line from Bayer Hennecke in Germany, with super strong insulation
Design patent for wind-resistant track, never derailing and safer.
Door panel cold breaking design: The door panel cold breaking mouth isolates the conduction of cold and hot air inside and outside; Track cooling design: Avoid the track becoming a cold bridge, prevent condensation and running cold; Cold break design of profiles: avoid profiles becoming cold bridges, prevent condensation and cold running.
High-quality hardware components will not rust in damp cold storage environments.
The Fastlink Sectional Door has passed CE certification and is designed with comprehensive safety considerations, such as the bottom door panel rebounding when encountering resistance during descent; design of anti-breakage safety protection for steel wire rope; twisted spring anti-breakage safety protection design; door panel anti-pinch design, etc., can be selected with confidence. The manufacturer provides a complete operation and maintenance support manual.
The unique structural design of the Sectional Door has strong wind resistance, which can meet a minimum wind resistance of 700Pa. In coastal cities where typhoons pass through, the sectional doors are unscathed under the adverse weather conditions of the typhoon. The rolling shutter door curtain is relatively thin and has weak wind resistance, generally at 250Pa. During typhoon weather, rolling shutter doors may be blown away. Generally, insulated sectional doors are a more suitable choice for industrial buildings.
The unique door panel cold breaking structure and sealing design of the cold storage insulation sectional door can be used in cold storage environments above 0 ℃ and in the cold (minimum -30 ℃) natural environments, and will have an excellent insulation effect.
