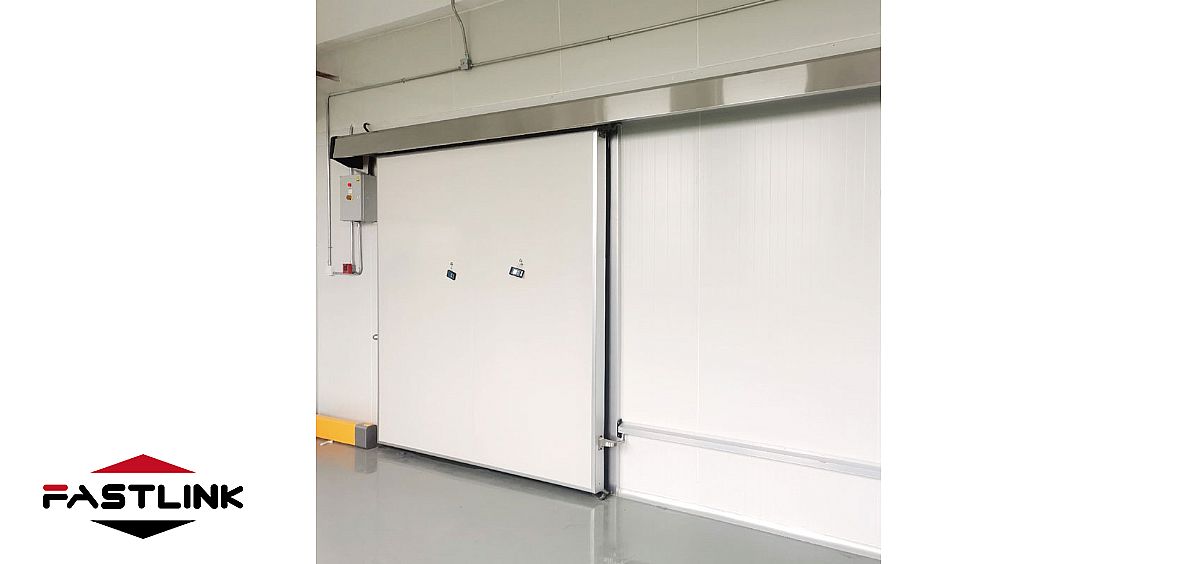

Cold storage metal sliding door adopts the modular manufacturing process of polyurethane heat preservation core material, which has the features of high standardization, simple structure, smooth operation, long service life, good heat insulation and heat preservation performance, and high security. Referring to the national standard of “17J610-1 Cold Storage Door” and the line standard of “SB/T10569-2010 Cold Storage Door”, it is produced and installed. Adopting variable line track, floating open and sinking closed door opening system to achieve self-sealing effect. Typical application industries: Applicable to assembled cold storage, civil cold storage, constant temperature storage and ultra-low temperature cold storage with temperature not lower than -60 ℃ for food, medicine, logistics and chemical industry.
The door plate is made of brushed process 304 stainless steel plate or color steel, the interior is filled with thermal insulation, flame retardant polyurethane, density 45±3Kg/m3.
Sealed
Heavy-duty aluminum alloy closed rail, safe to put off the rail, the guide rail is open with floating open and sinking closed function “V” type hawthorn. The rail is made of 6063-T5 technology with 8mm thickness and anodized surface.
Break cold
Aluminum alloy/304 stainless steel section cooling structure (door frame), designed with embedded electric heating tank, self-limiting heating wire power 25w/m.
All-round safety protection
Anti-trap function: adopting permanent magnet servo motor, with self-bouncing function in case of obstruction; Emergency manual opening device: after power failure, the door can be opened manually from inside and outside. External door opener lever-type opening handle, internal door opener for automatic interlocking device. Safety warning: internal door opening and unlocking device has eye-catching luminous marking. Door opening and closing warning light: The door opening status has a beeping warning light to remind the personnel to pay attention to the safety of the passage; Electrical safety: 1) The net gage has a self-limiting heating wire with a maximum limiting temperature of 65℃. Meet the requirements of GB/T19835. 2) The electric control box is equipped with leakage, overload, short circuit protection and thermostat protection.
Various opening methods
push button switch, remote control, pull rope switch, etc.
Parts Design Highlights
01
Adopting rack and pinion transmission form, adopting permanent magnet servo motor, motor and control system protection grade IP65.
02
One-touch button with simultaneous door open/stop/door close function
03
Hardware such as hanging wheel racks and handles are made of 304 stainless steel to prevent rusting, and the pulleys are made of nylon pulleys.
04
Security lock design, especially corresponding to the open warehouse, effectively protect the goods against theft
05
Net gage with self-limiting heating wire, maximum limiting temperature 65℃. Meet the requirements of GB/T19835. The electric control box is equipped with leakage, overload, short circuit protection and thermostat protection.
Process Highlights
Variable line wall track design, the door fits tightly to the net gage and ensures a tight seal
The clear gage is equipped with a closing pressure device to guarantee the sealing of the door panel and the clear gage
The door plate is made of brushed process 304 stainless steel plate or color steel, the interior is filled with thermal insulation, flame retardant polyurethane, density 45±3Kg/m3.Thermal insulation, cold insulation, energy saving, can be used with one door for -35 ℃ cold storage
Frequent door opening and closing: it is recommended to choose high-speed sliding door for cold storage, a door can realize heat preservation, high-speed switching, frequent switching, anti-collision reset and other functions, which has been applied in a large number of cold storage. Infrequent opening and closing: it is recommended to choose metal cold storage sliding door, which can realize effective sealing and heat preservation, and has been applied in a large number of storage cold storage.
